Main Spec
|
Item |
M23DY |
|
|
Engine |
Engine Brand |
Kubota D902 |
|
Fuel |
Diesel |
|
|
Rated Power |
18.5Kw(25HP) |
|
|
Rated Speed |
3600rpm |
|
|
Max Torque |
56.1N.m@2400 |
|
|
Hydraulic System |
System Pressure |
17Mpa |
|
System Flow |
42L/min |
|
|
Performance parameter |
Load Capacity |
255kg |
|
Bucket Volume |
0.15cbm |
|
|
Max lifting power |
375 Kg |
|
|
Speed |
0-5.1Km/h |
|
|
Operating Weight |
1000kg |
|
|
Fuel Tank Volume |
37L |
|
|
Hydrauli Oil Tank Volume |
37L |
|
|
Track Width |
180mm |
|

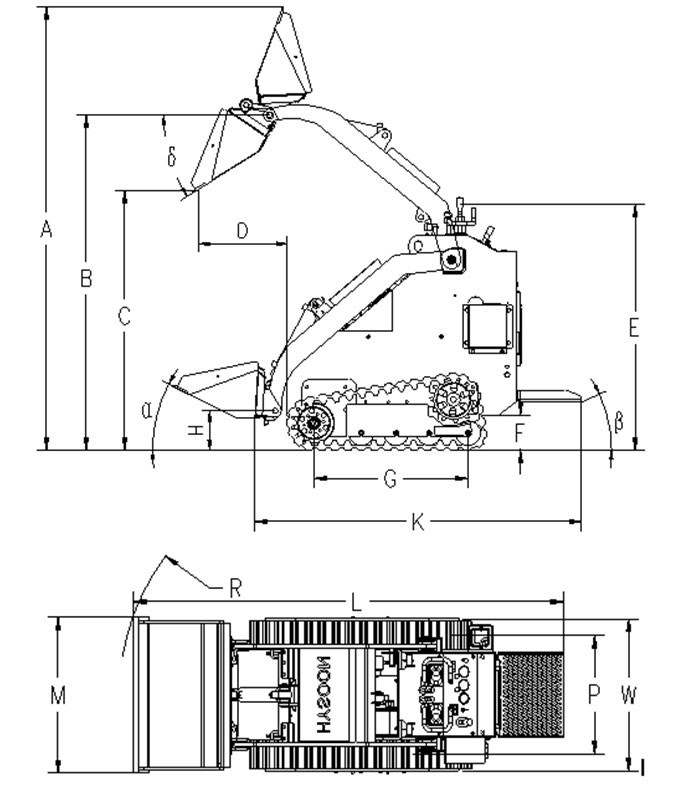

Main Size
|
Item |
M23DY |
|
Max Woeking Height (A) |
2116mm |
|
Max Pin Height (B) |
1854mm |
|
Max Dumping Height ( C ) |
1437mm |
|
Max unload point distance (D) |
477mm |
|
Dumping Angle (δ) ( o) |
32° |
|
Bucket collecting angle (θ) ( o) |
33° |
|
Departure Angle (α) ( o) |
27° |
|
Height (E) |
1360mm |
|
Ground Clearance (F) |
178mm |
|
Axle base (G) |
850mm |
|
Min Pin Height(H) |
214mm |
|
Length without bucket (K) |
1739mm |
|
Length (L) |
2172mm |
|
Bucket width (M) |
850mm |
|
Wheel Base(P) |
670mm |
|
MinTurning Radius (R) |
1236mm |
