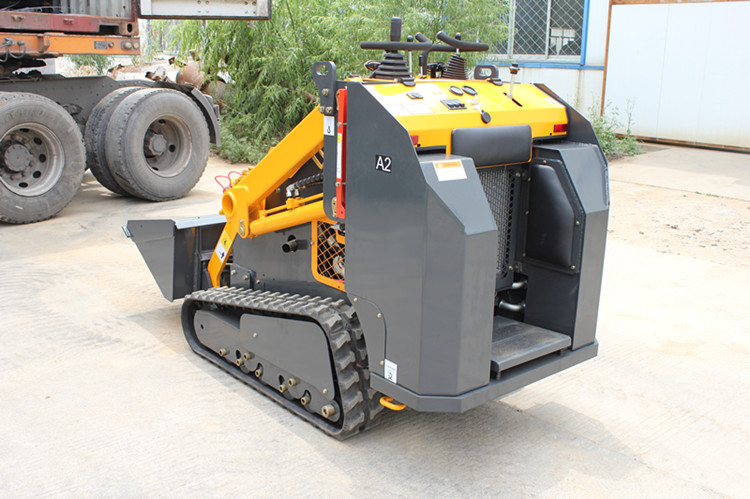

A2 mini skid steer loader


Item

A1,A2 mini skid steer loader

A1 model (Wheel Type)

A2 model (Track Type)

Max working height(A)

2355 mm

2355 mm

Max pin height (B)

2088 mm

2122 mm

Max flat bucket height(C)

1942 mm

1976 mm

Max dump height(D)

1588 mm

1622 mm

Max dumping distance(F)

464mm

528mm

Ground clearance(J)

195mm

230mm

Total height (H)

1479 mm

1514 mm

Wheelbase (G)

817 mm

1000mm

Wheel distance(P)

819mm

800mm

No bucket length(J)

1961 mm

1961 mm

Total width (W)

1029 mm

980 mm

Bucket width (K)

1150 mm

1150 mm

Total length(L)(with bucket)

2438 mm

2438 mm

Minimum turning radius (R)

1492 mm

1507 mm

Bucket discharging angle(β)

43°

43°

Engine

Rated Power (KW)

PERKINS 24.4KW/33HP Diesel engine

Rotating Speed/torque

2800rpm/ 96Nm

Hydraulic System

Pressure

20Mpa

Performance parameters

Tipping load

730kg

900kg

Operating Load

365kg

320kg

Bucket Capacity

0.15m³

0.15m³

Fuel tank capacity

53L

53L

Hydraulic oil tank capacity

52L

52L

Max Lifting Force

375kg

827Lb

Travel Speed

6km/h

6km/h




1. Easy controlled attachment joint and quick hitch plate. change different attachments quickly and easily.

2. 24.4KW (32HP) Perkins diesel engine, big power. International warranty that enjoys local service.

3. Joystick handle. Operating smoothly and comfortably. Joystick pump is big working flow.

4. Wheel type and track type optional.

5. Easily maintenance. Upper cover and back guard plate can be opened and dismounted easily.

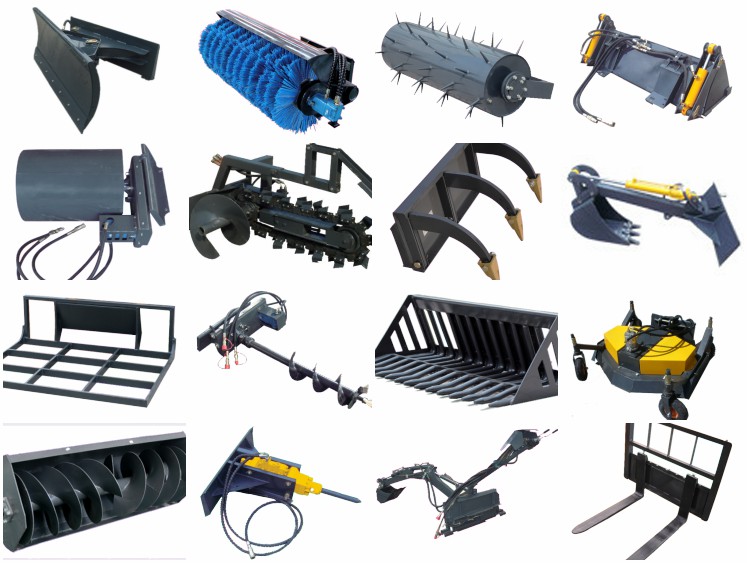

6.One loader can for various function. A1,A2 mini skid steer loader can attach different attachments, such as bucket, digger, auger, backhoe, hydraulic breaker, pallet forks, angle broom, sweeper,lawn mower, snow blower, stump grinder, tree spade, 4 in 1 bucket, leveler, dumping hopper, ripper, grapple , tiller, mixer, stone bucket, trailer, snow blade and so on, thus ensuring there is a tool for every job you can do possibly.
