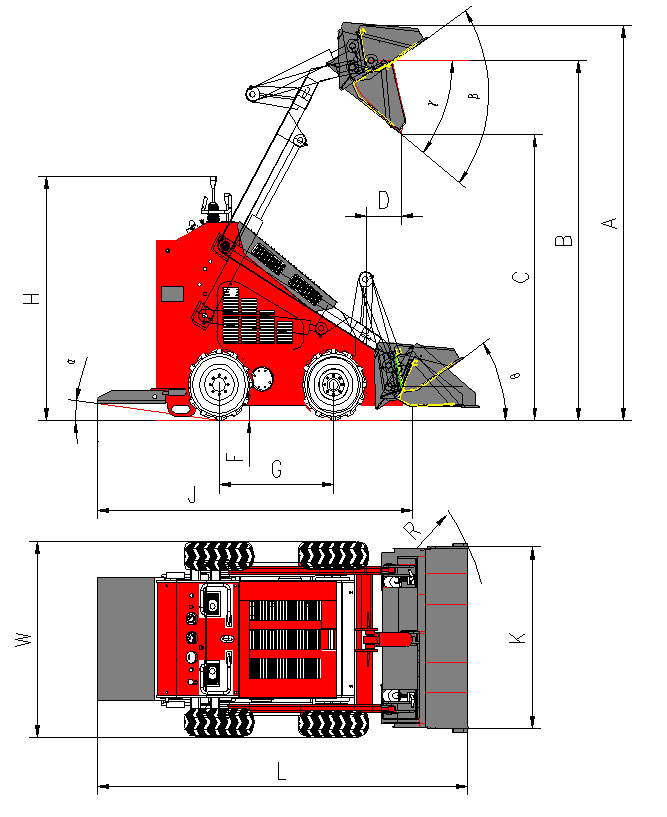

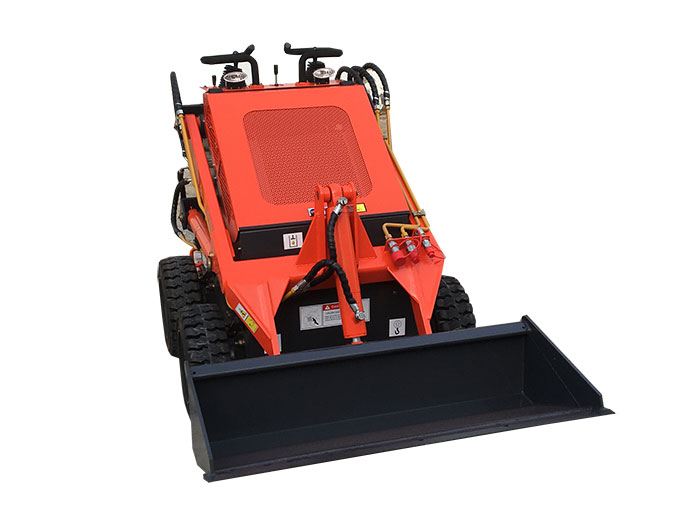

Main Size：
|
Item |
HY380E Design Data |
||||
|
Track |
Solid Tire |
Normal Tire |
Widen Tire |
Chevron Engineering Tire |
|
|
Max Woeking Height（A） |
2128 mm |
2115 mm |
2155 mm |
2155 mm |
2143 mm |
|
Max Pin Height（B） |
1869 mm |
1856 mm |
1896 mm |
1896 mm |
1884 mm |
|
Max Dumping Height（ C ） |
1473 mm |
1460 mm |
1500 mm |
1500 mm |
1488 mm |
|
Max unload point distance（D） |
399 mm |
388 mm |
348 mm |
348 mm |
348 mm |
|
Bucket swing Angle（β） |
55° |
55° |
55° |
55° |
55° |
|
Bucket collecting angle（θ） ( o) |
30° |
30° |
30° |
30° |
30° |
|
Departure Angle（α）( o) |
25° |
25° |
25° |
25° |
25° |
|
Height（E） |
10° |
8° |
12° |
12° |
11° |
|
Ground Clearance（F） |
1218 mm |
1205 mm |
1245 mm |
1245 mm |
1233 mm |
|
Axle base（G） |
105mm |
90 mm |
130 mm |
130 mm |
118 mm |
|
Length without bucket（K） |
612mm |
636 mm |
636 mm |
636 mm |
636 mm |
|
Bucket collecting angle（θ） ( o) |
1752 mm |
1752 mm |
1752 mm |
1752 mm |
1752 mm |
|
Total Width（W） |
1060 mm |
1033 mm |
1033 mm |
1183 mm |
1160 mm |
|
Bucket width（M） |
980 mm |
980 mm |
980 mm |
980 mm |
980 mm |
|
Length（L） |
2206 mm |
2206 mm |
2206 mm |
2206 mm |
2206 mm |
|
Front Turning Radius（R） |
1317 mm |
1307 mm |
1307 mm |
1307 mm |
1307 mm |
Main Spec
|
Item |
HY380E |
||||
|
Electric Motor |
Rated power（KW） |
12KW |
|||
|
Battery |
Volume（A.h） |
210 |
|||
|
Hydraulic System |
System Pressure（Mpa） |
17 |
|||
|
Working Time（s） |
Lifting |
Dumping |
Down |
||
|
4.27 |
1.34 |
3.31 |
|||
|
Performance parameter |
|
Metric System |
English System |
||
|
Load Capacity |
220 Kg |
485Lb |
|||
|
Bucket Volume |
0.15 m3 |
5.33 ft3 |
|||
|
Max Lifting Force |
420Kg |
926 Lb |
|||
|
Speed |
0-5.5 Km/h |
0-3.4 mlie/h |
|||
|
Operation Weight |
With Solid Tire |
1049 Kg |
2313 Lb |
||
|
With Normal Tire |
995 Kg |
2194 Lb |
|||
|
With Widen Tire |
979 Kg |
2159 Lb |
|||
|
Tire Model |
With Solid Tire |
16×6-8 |
|||
|
With Normal Tire |
5.00-8 |
||||
|
With Widen Tire |
KT-302 18*9.5-8 6P/TL |
||||
|
Chevron Engineering Tire |
18*8.5-8 |
||||
