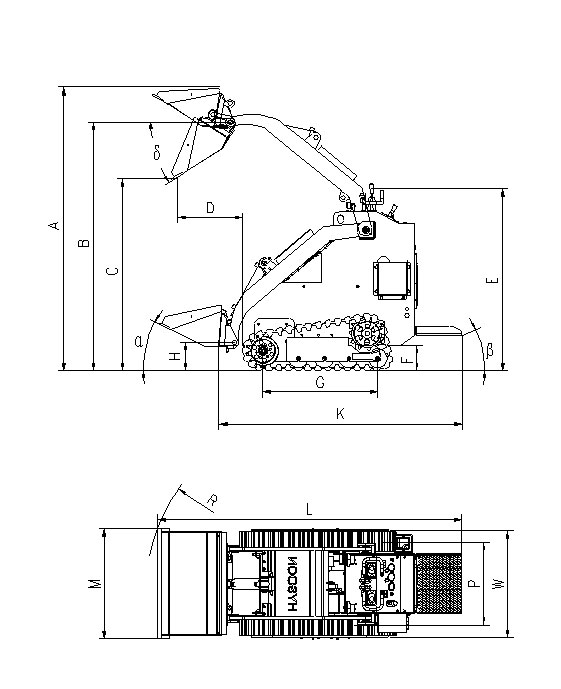

Main dimension
|
Item |
Data |
|
Max working height（A） |
2116mm |
|
Max pin height（B） |
1854 mm |
|
Max discharge height（ C ） |
1437 mm |
|
The highest unload distance（D） |
477 mm |
|
Total height（E） |
1360 mm |
|
The height from the ground（F） |
165 mm |
|
Min. pin height（H） |
214 mm |
|
wheelbase（G） |
850 mm |
|
Wheel track （P） |
670 mm |
|
Max angle of unloading（δ）( o) |
32 |
|
Retracting angle（θ） ( o) |
33 |
|
Angle of departure（α）( o) |
27 |
|
Turning radius（R） |
1236 mm |
|
Total length without bucket（K） |
1778 mm |
|
Track outside width（W） |
850 mm |
|
Bucket width（M） |
850 mm |
|
Total length（L） |
2210 mm |
Main Spec
|
Item |
Standard configuration |
|
|
Engine Brand |
Briggs&Stratton |
|
|
Engine Power |
23hp |
|
|
Hydraulic auxiliary flow rate |
System Pressure |
17 Mpa |
|
System Flow |
Standard 25/ joystick 42 L/ min |
|
|
Operating load capacity |
908kg |
|
|
Operaing load capacity |
165 kg |
|
|
Max lifting power |
375kg |
|
|
Bucket capacity |
0.15m3 |
|
|
Speed |
0-4.8 km/h |
|
|
Fuel tank volume |
22.5L |
|
|
Hydraulic oil tank volume |
27.8L |
|
|
Track width |
180mm |
|
