Excavator
HY17 excavator
|
   |
|
Model |
HY17 | |
|
Specfications | ||
|
Operating Weight |
Kg |
1700 |
|
Bucked Volume |
m3 |
0.04 |
|
Rated Power |
kw/r/min |
10/2200 |
|
Swing Speed |
r/min |
8.8 |
|
Travel Speed |
km/h |
2.7-5.0 |
|
Ground Pressure |
kpa |
28 |
|
Climbing Capacity |
Degree |
30 |
|
Arm Digging Force |
kN |
10.2 |
|
Bucket Digging Force |
kN |
14.8kN |
|

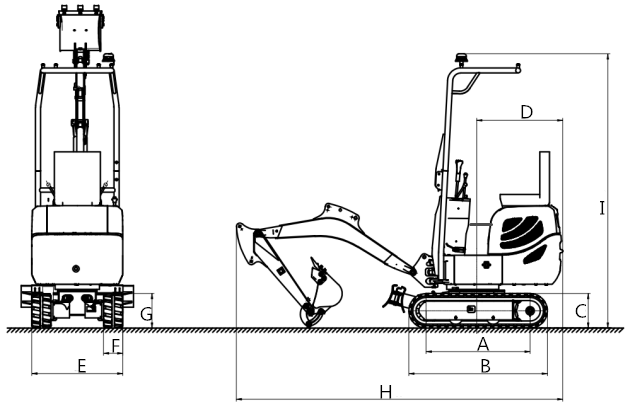

Main Dimension | ||
|
A: Track Ground Contact Length |
mm |
1210 |
|
B: Track Length |
mm |
1588 |
|
C: Platform Ground Clearance |
mm |
320 |
|
D: Rear-end Turning Radius |
mm |
665 |
|
E: Width |
mm |
1000/1320 |
|
F: Track Width |
mm |
230 |
|
G: Counter Weight Ground Clearance |
mm |
507 |
|
H: Transportation Length |
mm |
3694 |
|
I: Height(Cab Top) |
mm |
2411 |
|

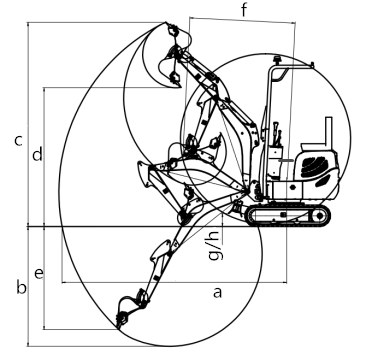

Working Range | ||
|
a: Max Ground Digging Distance |
mm |
3837 |
|
b: Max Digging Depth |
mm |
2033 |
|
c: Max Digging Height |
mm |
3296 |
|
d: Max Dumping Height |
mm |
2408 |
|
e: Max Digging Depth |
mm |
1590 |
|
f: Mini Turning Radius |
mm |
1625 |
|
G: Max Dozer Height |
mm |
405 |
|
Max Dozer Depth |
mm |
86 |
