Excavator
HY12 excavator
|
   |
|
Model |
HY12 | |
|
Specifications | ||
|
Operating Weight |
Kg |
1200 |
|
Bucked Volume |
m3 |
0.03 |
|
Rated Power |
kw/r/min |
10.3/2200 |
|
Swing Speed |
r/min |
11.5 |
|
Travel Speed |
km/h |
1.9 |
|
Ground Pressure |
kpa |
18.2 |
|
Climbing Capacity |
Degree |
30 |
|
Arm Digging Force |
kN |
6 |
|
Bucket Digging Force |
kN |
10kN |
|

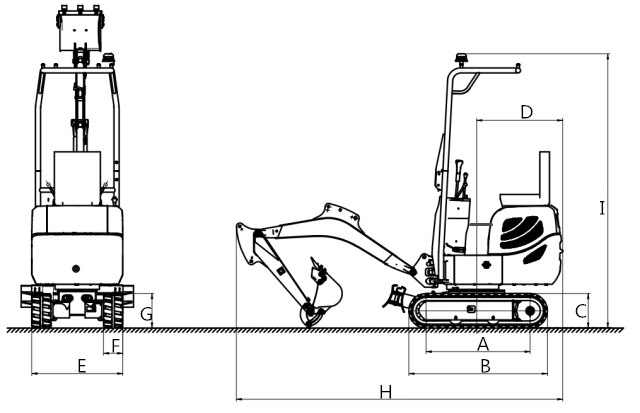

Main Dimension | ||
|
A: Track Ground Contact Length |
mm |
972 |
|
B: Track Length |
mm |
1296 |
|
C: Platform Ground Clearance |
mm |
324 |
|
D: Rear-end Turning Radius |
mm |
806 |
|
E: Width |
mm |
850/1050 |
|
F: Track Width |
mm |
180 |
|
G: Counter Weight Ground Clearance |
mm |
404 |
|
H: Transportation Length |
mm |
3053 |
|
I: Height(Cab Top) |
mm |
2588 |
|

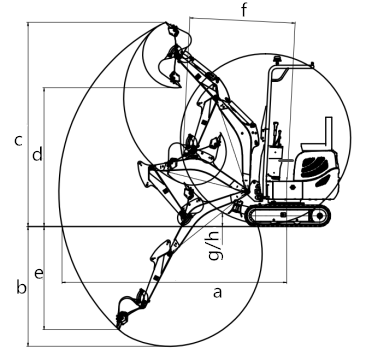

Working Range | ||
|
a: Max Ground Digging Distance |
mm |
3390 |
|
b: Max Digging Depth |
mm |
1809 |
|
c: Max Digging Height |
mm |
3018 |
|
d: Max Dumping Height |
mm |
2039 |
|
e: Max Digging Depth |
mm |
1595 |
|
f: Mini Turning Radius |
mm |
1591 |
|
G: Max Dozer Height |
mm |
195 |
|
Max Dozer Depth |
mm |
195 |
