Attachments
Multi-function tool
|
   |
|
|
Metric system |
English system |
|
Hitch system weight |
48.43kg |
106.77 lb |
|
Ripper system weight |
50.72kg |
111.82 lb |
|
Transporting system weight |
41.22kg |
90.87 lb |
|
Tree boom system weight |
48.43kg |
106.77 lb |
|
Pipe filling system weight |
35.44kg |
78.13 lb |
|
Max crane height A |
1953mm |
76.89in |
|
Max ripping depth C |
335mm |
13.19in |
|
Distance between ripper teeth B1 |
290mm |
11.42 in |
|

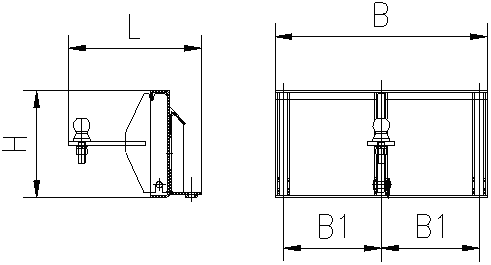

Hitch system size（L*H*B） |
393*316*628mm |
15.47*12.44*24.72in |
|
Ripper system size（L1*H1*B） |
484*351*628mm |
19.06*13.82*24.72in |
|

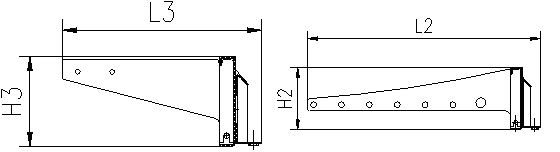

Transporting system size（L3*H3*B） |
705*316*628mm |
27.76*12.44*24.72in |
|
Tree boom system size（L2*H2*B） |
1170*316*628mm |
46.06*12.44*24.72in |
|
Max crane weight |
200kg |
440.92b |
