Skid Steer Loaders
HY850 Skid Steer Loader
|
   |

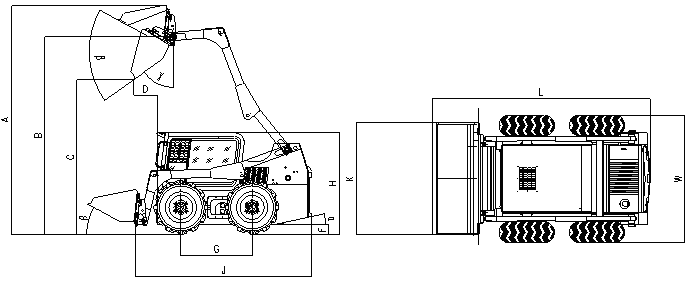

Main Dimension：
|
Max working height（A） |
3660mm |
144.1inch |
|
Max pin height（B） |
2840mm |
111.8inch |
|
Max dumping height（C） |
2220mm |
86.6inch |
|
Max Dumping distance（D） |
300mm |
11.8inch |
|
Max Dumping Angle |
39o |
|
|
Rollback of bucket on ground（θ） |
|
|
|
Departure angle（α） |
|
|
|
Total height（H） |
1482 mm |
58.3inch |
|
Ground clearance（F） |
135mm |
5.3nch |
|
Wheel base（G） |
1044mm |
41.1inch |
|
Overall length without bucket（J） |
2600 mm |
102.4inch |
|
Total width（W） |
1678mm |
66.1inch |
|
Tread width(centerline to centerline) |
1394 mm |
54.9inch |
|
Bucket width（K） |
1720 mm |
67.7inch |
|
后悬 |
874 mm |
34.4inch(技术说尽量不在网站上体现，可以删除) |
|
Total length（L） |
3300 mm |
129.9inch |
Technical Parameter:
|
MODEL |
HY850 | ||||
|
Engine |
Rated power KW |
45 | |||
|
Rated speed rpm |
2500 | ||||
|
Noise |
Inside of cab |
≤92 | |||
|
Outside of cab |
106 | ||||
|
Hydraulic system |
Hydraulic pressure |
14.2MPa | |||
|
Cycle time （s） |
Raise |
dump |
Lower | ||
|
5.56 |
2.16 |
5.03 | |||
|
|
Operating load（kg） |
850（Kg） |
1874lb | ||
|
|
Bucket capacity（m3） |
0.39（m3） |
17.3（ft 3） | ||
|
|
Tipping load |
1534（Kg） |
3374.8lb | ||
|
|
Bucket Break-out force |
1380（Kg） |
3036lb | ||
|
|
Max Lifting Force |
1934（Kg） |
4254.8lb | ||
|
|
Operating weight |
2840（Kg） |
6248lb | ||
|
|
Speed (km/h) |
0～9.6 (km/h) |
0～6(mile/h) | ||
|
Tire |
10.0-16.5 | ||||
