Mini Loaders
HY200 mini loader
|
   |

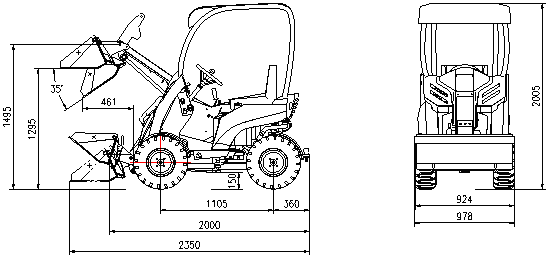

Main Dimension：
|
Max pin height（B） |
1412 mm 55.6inch |
|
Max dumping height（C） |
900 mm 35.4inch |
|
Max Dumping distance（D） |
558 mm 21.9inch |
|
Total height（H） |
2020 mm 79.5inch |
|
Ground clearance（F） |
160 mm 6.3inch |
|
Wheel base（G） |
1207 mm 47.5inch |
|
Overall length without bucket（J） |
2030 mm 79.9inch |
|
Total width（W） |
970 mm 38.2inch |
|
Bucket width（K） |
980 mm 38.6inch |
|
Total length with bucket（L） |
2424 mm 9inch |
|
Departure angle（α） |
|
|
Bucket dumping angle（γ） |
26° |
|
Rollback of bucket on ground（θ） |
48° |
Technical Parameter
|
Item |
HY200 | |
|
Rated Power |
17.1KW |
23HP |
|
Fuel Volume |
22L |
4.8 UKgal |
|
Hydraulic oil volume |
21L |
4.6 UKgal |
|
Operating weight |
260Kg |
573.2Lb |
|
Bucket capacity |
0.15 m3 |
5.32 ft3 |
|
Max pushing power |
5 KN |
1124Lbf |
|
Max lifting power |
4.6 KN |
1034 Lbf |
|
Speed |
0-8km/h |
0-4.97mile/h |
|
Operating load |
260 Kg |
573.2 Lb |
|
Min Turning radius |
2320mm |
91.3 inch |
|
Tires |
21*8.00-10TR | |
